​BIẾN TẦN BONFIGLIOLI - S2U - PLUG & PLAY FREQUENCY INVERTER

The ideal drive for your lean application projects

Description

The Ideal drive for your lean application projects.
Intuitive and simple, but powerful and effective.

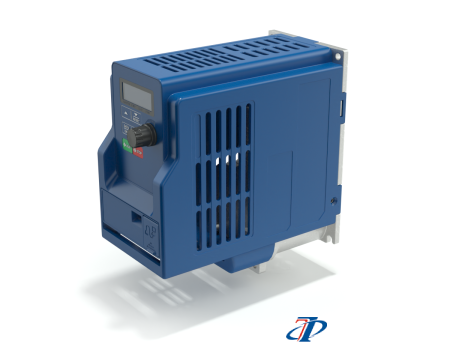

S2U is the Bonfiglioli Vectron compact Inverter for efficient speed and torque vector control of electric motors, up to 2.2kW.
The simple installation and use, together with connectivity and outstanding range of functions, make it the the perfect drive for the control of those applications where productivity and short time to market are critical.

Power range (S2U 230)
0.25 - 3.0 kW 3-Phase 200 - 240V / 50 - 60Hz (+10, -15%)

Type of control
V/F control with automatic torque compensation function

Overload capacity
150% for 60s

Switching frequency
1-16 kHz

Enclosure
IP20

EMC filter
Standard Integrated A Class filter

Main standard hardware features
5 models In 2 frame sizes
1 Analog Input (V or I selectable)
5 Digital Input (programmable multifunction)
1 Analog Output (voltage linear)
1 Relay output (programmable multifunction)
1 RJ45 terminal for communication with PC or modbus network

Keypad
Built-in standard keypad with potentiometer

Connectivity
Built-in Modbus communication

Main functions
100% configuration compatibility with Bonfiglioli Synthesis series
Selectable auto re-start after power loss
2 acc/dec times - 4 S curves available
Overload detection
PID control
Torque boost
Stall prevention
I2t Motor temperature monitoring
Heat sink overheat protection
Selectable stop method
JOG frequency
Alarm history
Short power loss override
Output Short-Circuit protection
Grounding fault protection
DC braking injection
